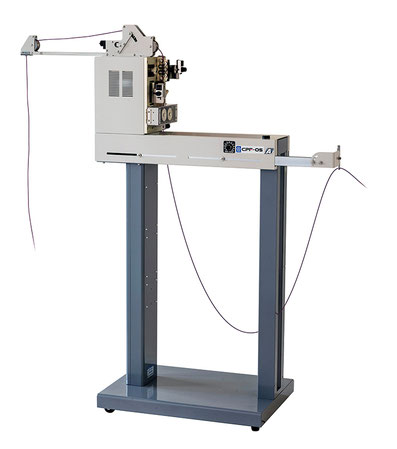

CPF-05A Pre-feeder with computer learning function
Thanks to its computer learning function, the wire feed is smooth.
Furthermore, wire slack is absorbed within the unit, and a unique wire straightening device enhances processing accuracy.
In addition, it has demonstrated high-speed operation efficiency with a maximum wire feed speed of 3.3 meters per second, enabling higher-value processing.
Compatible models
CASTING
CASTUGNON
Specification
| Model | CPF-05A |
| Main Unit Dimensions | Width 420mm x Depth 1,135-1,420mm x Height 1,350mm |
| Weight | 40kg |
| Power Supply | AC100V or 220V 50/60Hz (single-phase power supply) |
| Power Consumption | 30W at rest, 130W at maximum rotation (at 100V AC) |
| Core Wire Size | AWG28-14 *depends on the wire material |
| Wire Feed Rate | 3.3m/sec (maximum) |
| External Output | Max 5A AV100V |
