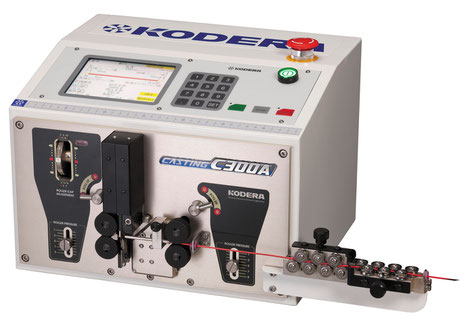

Casting C300A
Compact & Economy
C300A has been esteemed basic performance, it became the most compact design and light weight that Kodera has ever made. Also, it is the lowest price machine in KODERA CASTING series.
It has better performance than the old model C300 and moreover has good performance of processing thin line.
Short wire processing
Best for short wire processing that minimum cutting length 20mm except strip length.
Processing capacity
Processing conditions:
▪Front / Rear strip length 3mm
▪Speed 9
▪Core diameter 0.6mm
▪Thin wire mode
| Total Length | Processing Capacity |
| 100mm | 5,200 pcs/hour |
| 200mm |
4,650 pcs/hour |
| 300mm | 4,230 pcs/hour |
| 500mm | 3,600 pcs/hour |
| 1,000mm | 2,550 pcs/hour |
Specification
|
Model |
C300A |
| Stripping Length | Front / Rear：0.1mm～20mm |
| Cutting Length | 0.1mm～99,999mm |
| Cutting Tolerance | ± (0.1+0.0005×L) mm |
| Minimum processing Length | L≧20mm* |
| Wire Size | AWG#16 (1.25sq)～#36 (0.01sq) *Depends on the wire type |
| Wire Diameter | Maxφ3.5mm *Depends on the wire type |
| Wire Type | AVSS, VSF, IV, KV, UL, Teflon etc. |
| Power Supply | AC100V, AC200V～240V 50/60Hz |
| Optional Equipment | None |
| Dimension | 370×370×296mm |
| Weight | 24kg |
