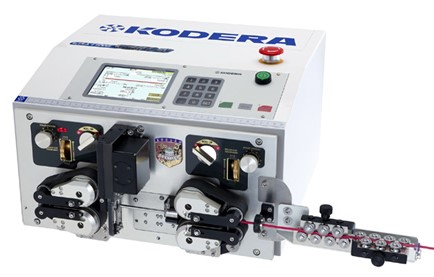

Casting C381A


Belt feed system

Based on C371A, it has been actualized the stable length measurement by performing the wire feeding with belt feed system. It can grasp the face of the wire whose surface is unlevel, which is often seen on shield wire.



Optional equipment for additional uses

The useful option would be a mid stripping unit CMS-801A2.

Processing capacity


Processing conditions:

▪Front/Rear strip length 3mm

▪Speed 9

▪Wire UL1007/AWG#22

▪Thin wire mode

Total Length  Processing Capacity
   100mm  7,100 pcs/hour
   200mm

 6,550 pcs/hour

   300mm  6,050 pcs/hour
   500mm  5,250 pcs/hour
1,000mm  3,950 pcs/hour
2,000mm  2,700 pcs/hour
3,000mm  1,950 pcs/hour

Specification


Model

C381A
Stripping Length  Front / Rear:0.1mm~47.9mm
Cutting Length  0.1mm~99,999mm
Cutting Tolerance ± (0.1+0.0005×L) mm
Minimum processing Length L≧50mm*
Wire Size AWG#7 (10sq)~#28 (0.08sq) *Depends on the wire type
Wire Diameter Maxφ11mm *Depends on the wire type
Wire Type AVSS, VSF, IV, KV, UL, Teflon etc.
Power Supply AC100V~AC240V 50/60Hz
Optional Equipment CMS-801A2  Mid stripping unit
Dimension 430×420×270mm
Weight 27kg

Downloads


Options


Mid stripping unit

It can handle wires with an outer diameter of up to 8mm. It can mid strip in up to 10 different positions on a single wire. Automation has been accomplished thus far by this revolutionary equipment.
