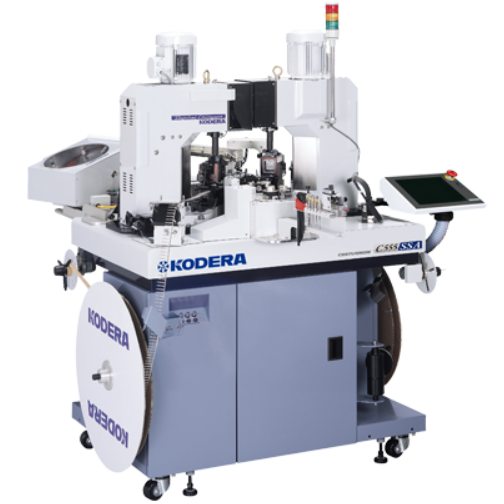

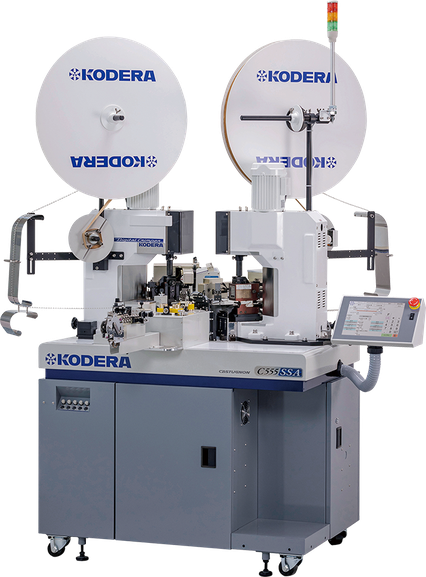

C555SSAZ- Full Automatic Double Ends Crimping Unit

& Single End Seal Insertion Unit

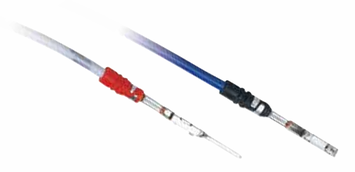

You can process wires with cutting, stripping, crimping

and seal inserting in one machine!



➤Equipped with a seal insertion unit for single end based on C551SSAZ.





*These videos are about C551SSAZ


C555SSAZ is the latest full automatic crimping machines which are faster start-up time, stable quality, and faster processing speed compared with the old model C555SZ.



■New models do not need a PC anymore and it fulfilled to shorten the start-up time.


■By dividing between cutting blade, front stripping blade and rear stripping blade, it is possible to further stabilize the quality of the stripping and increase the processing speed.




■In addition to the conventional spraying mechanism, the strip dust is less scatter by vacuuming.

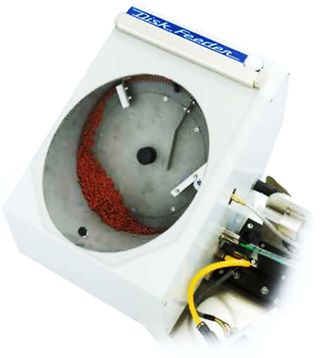

 DF-01 Disk feeder - Seal insertion unit  Patented product



➤As wire seal is sorted to the correct direction, speedy seal supply has been realized.

The sensor does not miss any wire seals to the end of the processing.

➤Recommend the combination use with OR-01 oil removal unit for the wire seals.

➤By one-touch operation, you can change the unit easily.

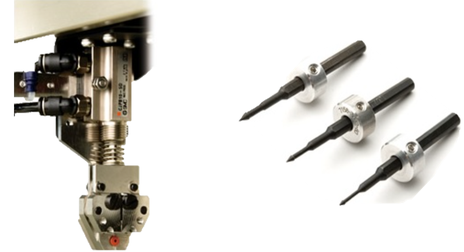

 ・Seal chuck can be easily changed by one-touch coupler.

 ・Carry pin can be changed by single screw.




 Option - One Push Oil Remover for wire seal Patented product

OR-01 is developed for the proper oil removal for wire seals. It delivers one touch oil removal, which used to be done manually.



CFM Crimp force monitor

The load cell, which is installed in the ram of crimping unit, measures the precise crimping force for every terminal crimping. Since an encoder is used to control all the angles, measurement timing does not change regardless of voltage fluctuation.

CHA Crimp height automatic reproduction mechanism

Crimp quality is controlled by the crimp height. Since crimp force is related to the crimp height, the C555SSAZ automatically adjusts the crimp force (crimp height), when the crimp force value is specified. Settings can be saved in memory function.

◆One machine to cover thin and thick wires!

CASTUGNON covers a wide range of wire size: #32~#12. You need only one machine to perform all different processing, which conventionally required three to four different machines.

◆User friendly + easy operation

Clear large size full-color LCD touch panel. The interactive picture panel is available for 6 languages, Japanese, English, Korean, traditional Chinese, simplified Chinese and Indonesian.



Processing capacity


Processing conditions:



▪Wire : 0.5sq(AWG#20)

▪Front and Rear : 4.5mm strip

▪Thin wire mode

▪Speed : all set to 9

▪Core wire diameter : 0.8mm

▪Cutter move back / 0.2mm

▪Rear gripping position : 30mm

▪Seal insert length : 20mm

▪Move back length

  after seal insert : 2mm

▪Seal detect : ON

▪3 blades mode

Total Length  Number of Processed wires
   100mm 3,280 pcs/hour
   200mm

3,280 pcs/hour

   300mm 3,280 pcs/hour
   500mm 3,230 pcs/hour
   800mm 3,070 pcs/hour
1,000mm  2,980 pcs/hour
1,500mm  2,790 pcs/hour
2,000mm  2,620 pcs/hour
3,000mm  2,340 pcs/hour
4,000mm 2,110 pcs/hour
5,000mm 1,930 pcs/hour

*This is the maximum level measured at Kodera. It may be under the level written here

  due to the type of the wire or terminal and also other processing conditions.


Specification


Model C555SSAZ

Setting Range

Front : 0.1~30mm / Rear : 0.1~20mm

Minimum Processing Dimension

L3 ≧ 44mm  (by attaching options : L3 ≧ 25mm)
Maximum Cutting Length  99,999mm (Approx.100m)
Cutting Tolerance  Within ±(0.2+0.002×L) mm  *L=Cutting length
Crimping Terminal

    Open barrel chain terminal (Left-to-right side feed, End feed)

Crimping Capacity     2.5ton
Stroke     30mm or 40mm
Power Rating     Single phase  AC200V~AC240V  50/60Hz
Air Supply (Nℓ/min 0.5Mpa)     35
Power Consumption     At rest : 365w / Max : 990w
Width × Length × Height     1090 × 780 × 1550 mm
Weight     480 kg
Applicable Wire Diameter     AWG#12~#32  (Depends on the wire type)
Applicable Wire Type     AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV, Teflon wire, Glass wire etc.
