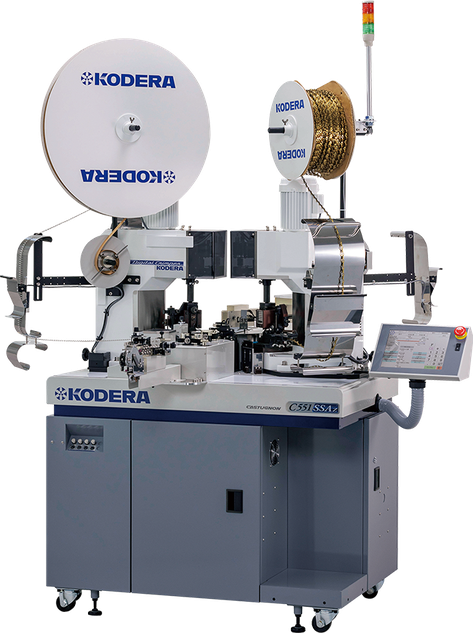

C551SSA(Z) - Fully automatic double-ended crimping machine
The C551SSAZ model is equipped with the CHA (Automatic Crimp Height Reproduction Mechanism) as an additional option.
A completely redesigned system! An evolved standard.
Featuring a three-blade design, it delivers superior machining performance.
Achieved 5,340 bottles/hour (L=300).
■The newly designed electrical system shares some components with the C551HXG, including the power supply system and control board, resulting in greater stability and reliability.
■It features three independent blades: a front stripping blade, a cutting blade, and a rear stripping blade. Furthermore, the inclusion of a new "cut after stripping" mode drastically reduces problems caused by stripping dust remaining on the blades.
■The front carrier dust, strip dust, and rear carrier dust each have their own separate dust boxes. Strip dust is prevented from scattering by air blowing and powerful suction.
■CHA (Automatic Crimp Height Reproduction Device)
*Additional Option:
This device stores ram height information simultaneously with processing data in memory, and automatically reproduces the ram height when the memory is read at a later date.

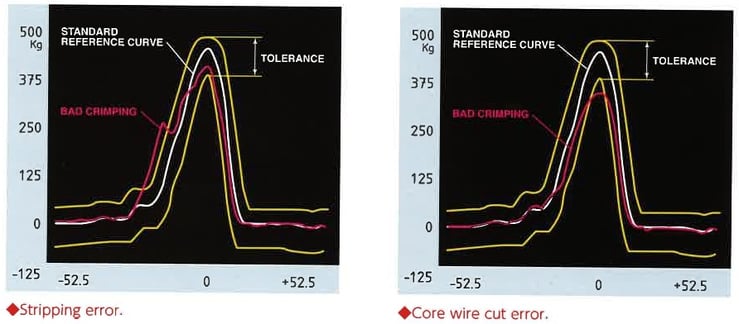

◆CFM Crimp force monitor
The load cell, which is installed in the ram of crimping unit, measures the precise crimping force for every terminal crimping. Since an encoder is used to control all the angles, measurement timing does not change regardless of voltage fluctuation.
◆CHA Crimp height automatic reproduction mechanism
Crimp quality is controlled by the crimp height. Since crimp force is related to the crimp height, the C551SSAZ automatically adjusts the crimp force (crimp height), when the crimp force value is specified. Settings can be saved in memory function.
◆One machine to cover thin and thick wires!
CASTUGNON covers a wide range of wire size: #32~#12. You need only one machine to perform all different processing, which conventionally required three to four different machines.
◆User friendly + easy operation
Clear large size full-color LCD touch panel. The interactive picture panel is available for 6 languages, Japanese, English, Korean, traditional Chinese, simplified Chinese and Indonesian.
Product Specifications
Processing conditions:
．Wire: 0.5 sq (AWG #20)
．End/End: 4.5 mm strip (crimped)
．Fine wire mode
．Speed: 9
．Core wire diameter: 0.85 mm
．Blade return: 0.2 mm
．Grip position: 30 mm
| Total Length | Number of Processed wires |
| 100mm | 5,340 pcs/hour |
| 200mm |
5,340 pcs/hour |
| 300mm | 5,340 pcs/hour |
| 500mm | 5,060 pcs/hour |
| 800mm | 4,670 pcs/hour |
| 1,000mm | 4,430 pcs/hour |
| 1,500mm | 3,990 pcs/hour |
| 2,000mm | 3,610 pcs/hour |
| 3,000mm | 3,080 pcs/hour |
| 4,000mm | 2,700 pcs/hour |
*This is the maximum level measured at Kodera. It may be under the level written here
due to the type of the wire or terminal and also other processing conditions.
Specification
| Model | C551SSA(Z) | |
|
External dimensions |
1,090mm x 780mm x 1,550mm | |
|
Minimum Processing Dimension |
L1 ≧ 44mm (by attaching options : L3 ≧ 25mm) |
| Maximum Cutting Length | 99,999mm (Approx.100m) |
| Cutting Tolerance | Within ±(0.2+0.002×L) mm *L=Cutting length |
| Tip configurable values |
0.1–30mm |
| Possible values for the rear end | 0.1–20mm |
| Minimum processing dimensions | L1 ≥ 40mm (L1 ≥ 33mm with optional equipment) |
| Power Supply | Single phase AC200V～AC240V 50/60Hz |
| Air Source | 15.7L/min 0.5 MPa |
| Power Consumption | At rest : 270Wh / Max : 891Wh |
| Weight | 421 kg |
| Applicable Wire Diameter | AWG#12～#32 (Depends on the wire type) |
| Applicable Wire Type | AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV, Teflon wire, etc. |
Seal Insertion Unit can be installed on C551SSAZ!!
