C558SSAZ- Full Automatic Double Ends Crimping Unit
& Double Ends Seal Insertion Unit
You can process both ends of wires with
cutting, stripping, crimping and seal inserting in one machine!
➤Equipped with two seal insertion units for both ends based on C551SSAZ.
*These videos are about C551SSAZ
The C558SSAZ model is equipped with the CHA (Automatic Crimp Height Reproduction Mechanism) as an additional option.
This model is based on the C551SSA and features two
waterproof seal insertion units (DF-01) for both ends.
Achieved 2,990 bottles/hour (L=300).
■It features three independent blades: a front stripping blade, a cutting blade, and a rear stripping blade. Furthermore, the inclusion of a new "cut after stripping" mode drastically reduces problems caused by stripping dust remaining on the blades.
■The front carrier dust, strip dust, and rear carrier dust each have their own separate dust boxes. Strip dust is prevented from scattering by air blowing and powerful suction.
■The waterproof seal dispenser
uses a dedicated disc to sort the seals in the correct orientation, ensuring stable supply. Sensors monitor the seals, allowing for precise dispensing down to the last one.
■CHA (Automatic Crimp Height Reproduction Device)
*Additional Option:
This device stores ram height information simultaneously with processing data in memory, and automatically reproduces the ram height when the memory is read at a later date.
◆DF-01 Disk feeder - Seal insertion unit ‹Patented product›
Equipped as standard on C555SSA, C558SSA and C556SZTS

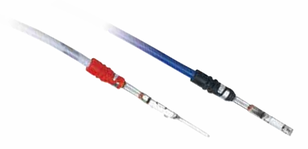

Waterproof chuck and carry pin fit for waterproof seals
A dedicated disk contoured to fit the shape of waterproof seals sorts waterproof seals in the correct direction, ensuring speedier and reliable supply.
The disk feeder monitors waterproof seals through a sensor and can supply waterproof seals to the last one without fail. It is not necessary to fine-adjust vibrations at all like a straight feeder. In addition, setups can be easily changed.

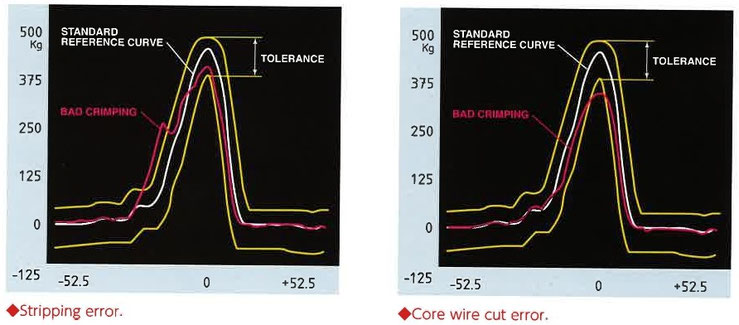

◆CFM Crimp force monitor
The load cell, which is installed in the ram of crimping unit, measures the precise crimping force for every terminal crimping. Since an encoder is used to control all the angles, measurement timing does not change regardless of voltage fluctuation.
◆CHA Crimp height automatic reproduction mechanism
Crimp quality is controlled by the crimp height. Since crimp force is related to the crimp height, the C558SSAZ automatically adjusts the crimp force (crimp height), when the crimp force value is specified. Settings can be saved in memory function.
◆One machine to cover thin and thick wires!
CASTUGNON covers a wide range of wire size: #32~#12. You need only one machine to perform all different processing, which conventionally required three to four different machines.
◆User friendly + easy operation
Clear large size full-color LCD touch panel. The interactive picture panel is available for 6 languages, Japanese, English, Korean, traditional Chinese, simplified Chinese and Indonesian.
Processing capacity
Processing conditions:
▪Wire : 0.5sq(AWG#20)
▪End/End: 4.5 mm strip (crimped)
▪Fine wire mode, Speed: 9
▪Core wire diameter: 0.85 mm
▪Blade return: 0.2 mm
▪Grip position: 30 mm
▪Waterproof seal insertion amount: 20 mm
▪Post-insertion return amount: 2 mm
▪Waterproof seal detection: Yes.
| Total Length | Number of Processed wires |
| 100mm | 2,990 bottles |
| 200mm |
2,990 bottles |
| 300mm | 2,990 bottles |
| 500mm | 2,900 bottles |
| 800mm | 2,760 bottles |
| 1,000mm | 2,600 bottles |
| 1,500mm | 2,540 bottles |
| 2,000mm | 2,400 bottles |
| 3,000mm | 2,160 bottles |
| 4,000mm | 1,970 bottles |
| 5,000mm | 1,800 bottles |
*This is the maximum level measured at Kodera. It may be under the level written here
due to the type of the wire or terminal and also other processing conditions.
Specification
| Model | C558SSAZ | |
|
Setting Range |
Front : 0.1～30mm / Rear : 0.1～20mm | |
|
Minimum Processing Dimension |
L3 ≧ 44mm (by attaching options : L3 ≧ 25mm) |
| Maximum Cutting Length | 99,999mm (Approx.100m) |
| Cutting Tolerance | Within ±(0.2+0.002×L) mm *L=Cutting length |
| Crimping Terminal |
Open barrel chain terminal (Left-to-right side feed, End feed) |
| Crimping Capacity | 2.5ton |
| Stroke | 30mm or 40mm |
| Power Rating | Single phase AC200V～AC240V 50/60Hz |
| Air Supply (Nℓ/min 0.5Mpa) | 45 |
| Power Consumption | At rest : 416w / Max : 1074w |
| Width × Length × Height | 1090 × 780 × 1550 mm |
| Weight | 510kg |
| Applicable Wire Diameter | AWG#12～#32 (Depends on the wire type) |
| Applicable Wire Type | AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV, Teflon wire, Glass wire etc. |
