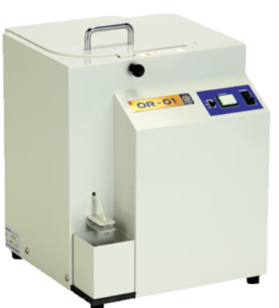

OR-01　One Push Oil Remover

This is developed for the proper oil removal for wire seals. It delivers one touch oil removal, which used to be done manually.

Specification

Model	OR-01
Outer Dimensions	W330×D330×H400 mm *w/o handle
Weight	40kg
Power Supply	AC200V or AC220V (single phase)　50Hz/60Hz
Power Consumption	At rest : 15w / Maximum : 250w
Mid Stripping Length	Max Up to 34mm
Drive Supply	Induction Motor
Oil Removal Time	S: 60 sec. / M: 150 sec. / L: 180 sec. (initial setup)
