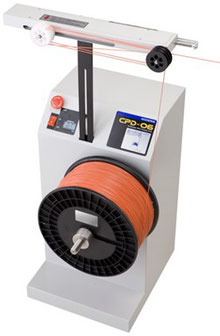

CPD-06 Automatic Bobbin Wire Supply Unit
The unit supplies the wire while straightening the wire from the bobbin. The speed is controlled automatically, so that smooth supply is ensured.
Specification
| Model | CPD-06 |
| Wire Size | AWG#18～#40 *Depends on the wire type |
| Bobbin Wire Weight | Max 20kg |
| Bobbin Wire Width | Max 200mm |
| Bobbin Wire Diameter | Max φ600mm |
| Bobbin Hole Diameter | φ20～40mm |
| Drive | Stepping motor |
| Power Supply | AC200V～240V 50/60Hz |
| Power Consumption | Rated：12w / Max：70w |
| Dimension | 450 × 545 × 1005 mm |
| Weight | 35kg |
