The smartest way to process multi-conductor cables!
It delivers simple handling and increased productivity.

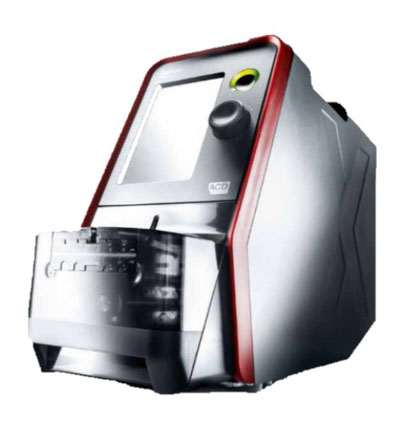

Mira 230 Q – ACD incision monitoring – useful
in more ways than one.
Achieves a significant quality improvement by installing the ACD (automatic conductor detection) function while maintaining the functions of MIRA230. The ACD function is detecting the contact between the blade and the core wire, and realizes processing with stable quality by notifying the occurrence of core wire scratches during the stripping process. Besides, by using the ACD function, delicate parameter settings can be made automatically and easily. It makes shortened the set-up time.
・Supports strip processing of a wide range of wires from AWG#32 to #8.
・Easy setting with a large touch screen.
・With the sequence processing function that combines with multiple different processing contents, such as wire size and striping size are automatically changed from the memory, multi-core cables and composite cables, and it is possible to greatly improve efficiency.
・The trimming (tip cut) function realizes a stable production for strip processing which requiring dimensional accuracy.
・It is possible to save all setting and processing data easily using the memory function.
|Function||Full strip, semi-strip, tip cut, multi-strip|
|Processable wire size||AWG#32～#8 (0.03～8m㎡)|
|Processable wire outer diameter size||Up to 6.5φ|
|Tip cut length||1.5～46mm|
|Maximum stroke length||46mm|
|Maximum possible wire size for tip cutting||AWG#14 (2m㎡)|
|Notch diameter setting unit||0.01mm|
|Strip length setting unit||0.01mm|
|Shortest insert dimension||MIRA230Q: Standard gripper: 12mm / Thin gripper 9mm|
|Cycle time||0.35sec/time * Depends on the setting conditions|
|Number of items that can be registered in memory||1500|
Complies with EU directives on machine safety
and electromagnetic compatibility.
