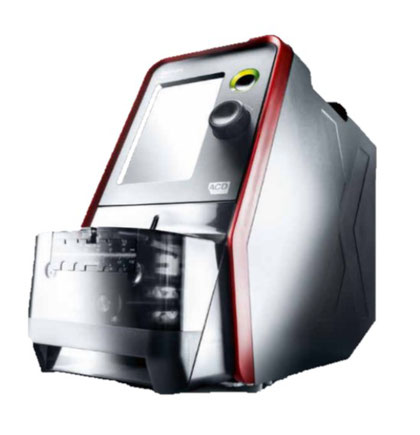

The smartest way to process multi-conductor cables!
・Supports strip processing of a wide range of wires from AWG#32 to #8.
・Easy setting with a large touch screen.
・With the sequence processing function that combines with multiple different processing contents, such as wire size and striping size are automatically changed from the memory, multi-core cables and composite cables, and it is possible to greatly improve efficiency.
・The trimming (tip cut) function realizes a stable production for strip processing which requiring dimensional accuracy.
・It is possible to save all setting and processing data easily using the memory function.
|Function||Full strip, semi-strip, tip cut, multi-strip|
|Processable wire size||AWG#32～#8 (0.03～8m㎡)|
|Processable wire outer diameter size||Up to 6.5φ|
|Tip cut length||1.5～46mm|
|Maximum stroke length||46mm|
|Maximum possible wire size for tip cutting||AWG#14 (2m㎡)|
|Notch diameter setting unit||0.01mm|
|Strip length setting unit||0.01mm|
|Shortest insert dimension||MIRA230 : Standard gripper: 11mm / Thin gripper 8mm|
|Cycle time||0.35sec/time * Depends on the setting conditions|
|Number of items that can be registered in memory||1500|
Complies with EU directives on machine safety
and electromagnetic compatibility.
