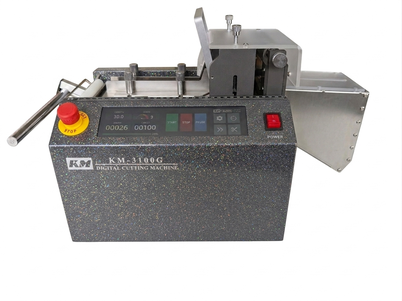

KM-3100G Digital Cutting Machine
Suitable for tube cutting such as shrink tube, PVC tube etc.
Easy to operate
The simple designed control panel helps you to use it very easily.

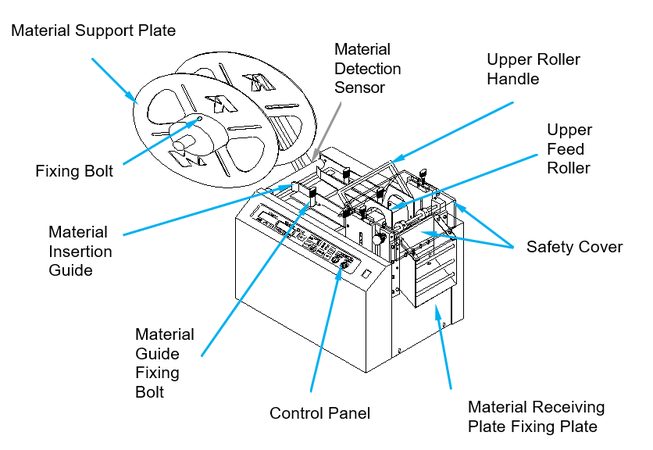

Reel stand is provided
The reel stand that can set bobbins up to a radius of 250 mm is built into the main body.

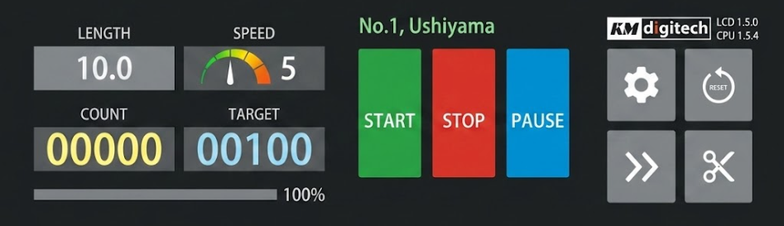

Touch Panel - Easy to Operate

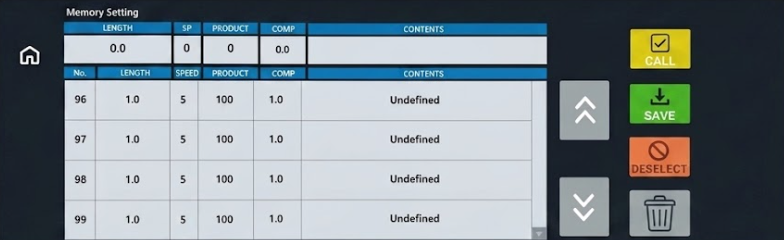

Memory Capacity: 100 units
The NEW model KM-3100G includes USB and D-Sub ports
Specification
| Power Supply | 110/220V AC, 50/60 Hertz |
| Cutting Length |
0.1mm up to 9999.9mm |
| Cutting Width |
0.1mm up to 91mm |
| Feed Motor |
Stepping Motor |
| Cutting Motor |
Reversible Motor (Geared) |
| Maximum Processing Quantity |
99,999 units |
| Memory Capacity |
100 units |
| Material Detection Sensor Type | Natural Load Type |
| Cutting Detection Sensor Type |
Time Control Method (2 seconds) |
| Dimensions |
W350mm x D250mm x H320mm |
| Weight | 21 kg |
