This creates slack in the terminals, ensuring ideal supply.

TF-01 / End feed terminal feeder (for upper use)

TF-02 / Side-feed terminal feeder (for upper use)

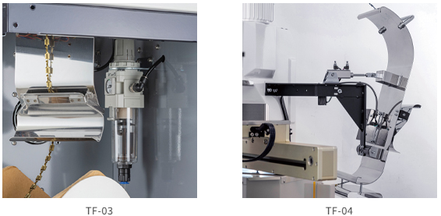

TF-03 / End feed terminal feeder (for downward use)

TF-04 / Terminal feeder for end feed with terminal presence/absence sensor (for upper use)

TF-05 / Terminal feeder for side feed with terminal presence/absence sensor (for upper use)

The entire plate flexes like a spring, gently supplying the terminals.

TG-01A / Terminal guide plate (for upper use)

TG-02A / Terminal guide plate with terminal presence/absence sensor (for upper use)

The device will shut down upon detecting that a terminal has been lost.

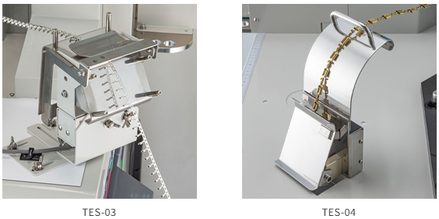

TES-03 / Side Feed Terminal Presence Sensor (for lower use)

TES-04 / End Feed Terminal Presence/Absence Sensor (for lower use)

The terminal reel automatically winds up the interlayer paper. The wound-up interlayer paper can be easily removed.

PT-01A / Toilet paper winder (for upper use)

PT-01A-S / Paper winder (for upper use, for TF-05)

PT-02 / Paper winder (for lower use)

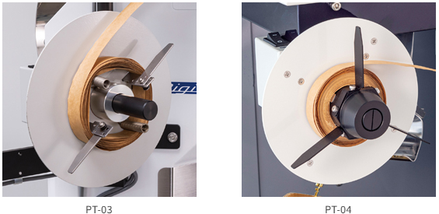

PT-03/SSA Paper Take-Up Machine (Upper Type)

PT-03S/SSA Paper Take-Up Machine (for upper use, for TF-05)

PT-04/SSA Paper Take-Up Machine (Lower Type)

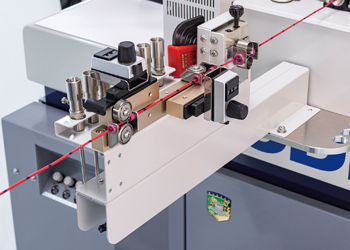

Collector with Wire Presence/Absence Sensor

It excels at straightening wires and allows for consistent processing conditions with a dial. A sensor detects the presence or absence of wire to be supplied and automatically stops when it runs out.

Collector with Wire Presence/Absence Sensor

It excels at straightening wires and allows for consistent processing conditions with a dial. A sensor detects the presence or absence of wire to be supplied and automatically stops when it runs out. It is exceptionally effective for straightening automotive wires such as CAVUS, AVSS, CHFUS, and HFSS.

wire entanglement sensor

It detects tangles in the supplied wires and shuts down the unit. *The photo shows it installed on the CN-4503B.

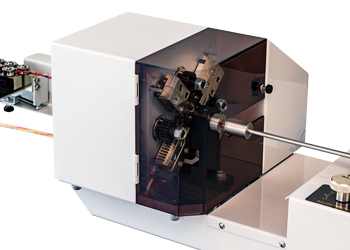

Intermediate Stripping Machine (with Collector)

Automated intermediate stripping of wires. Compatible with wires up to ⌀8mm in outer diameter. Furthermore, it can automatically strip up to 30 intermediate stripping points per wire (10 points for the C550SZ series). Because it strips the wire while removing any kinks, more accurate intermediate stripping is possible.

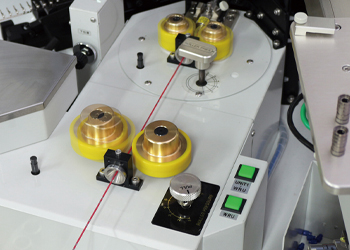

Double Roller Unit

By installing this "double roller unit" equipped with a ⌀50 diameter feed roller, variations in measured length are eliminated. Furthermore, it ensures strong adhesion between the core wire and the insulation, making wire processing problem-free.

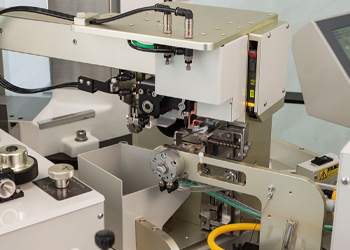

Strip Sensor and Waterproof Seal Presence/Absence Sensor

This device detects core wire breakage, cuts, and stripping defects during wire stripping. It also detects the presence or absence of waterproof seals.

Air Roller Opening/Closing Device

The rollers can be opened and closed with a light button operation, reducing the burden on the operator. The rollers open and close slowly using compressed air, which also reduces damage to the electrical wires.

K-blade air

Remove any remaining coating residue from the twisting blades of the CASY-647 using compressed air.

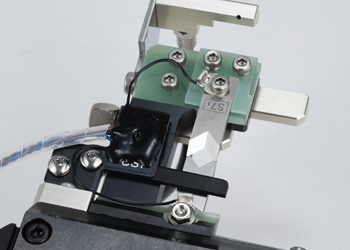

Blade Block with Core Wire Contact Sensor

This is a proprietary blade block equipped with a sensor that detects contact between the core wire and the blade during stripping.

Waterproof Seal Detection Position Adjustment Mechanism

The position of the waterproof seal detection sensor can be adjusted more easily.

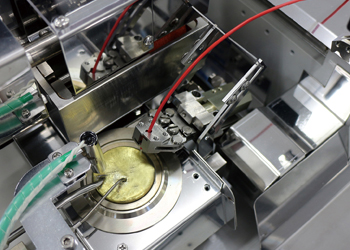

Solder Support

When soldering the rear end, if the terminal is too large and cannot be properly transferred to the discharge chuck, the wire is supported from below to assist with the transfer.

Rear End Defective Part Cutting Device

If the crimp force monitor at the rear end detects a crimping defect, the wire is cut off to prevent defective products from being shipped.

Reel Stand Bar

RSB is a bar used to attach terminal reels when supplying terminals from above. URSB is a bar used to attach terminal reels when supplying terminals from below.
