ST・MAC (Hybrid Series) Cable Stripper
- Four models are available to choose depending on the strip length -
▪A standard cable stripper with high cost performance that supports a wide range of cables from thin to large cables: φ2～φ19.
▪Enable to process deformed cables that are not circular by using cable guides.
Specification

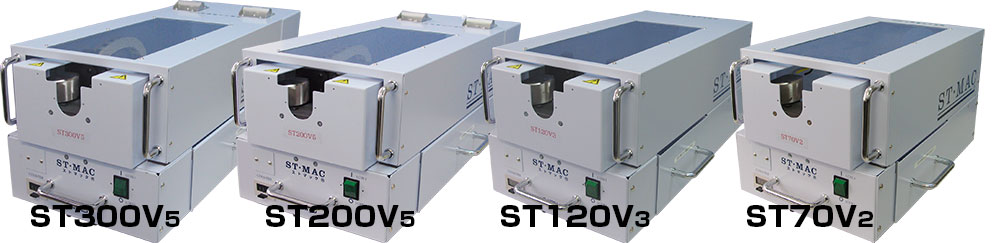

| Model | ST70V2 | ST120V3 | ST200V5 | ST300V5 |
ST300V5 TURBO-I |
| Full-strip Length | 3～70mm | 3～120mm | 3～200mm | 3～300mm | 3～300mm |
|
Maximum Semi-strip Length |
200mm | 300mm | 500mm | 500mm | 500mm |
|
Dimensions ( LxWxH /mm) |
535x320x270 | 645x320x270 | 790x320x280 | 790x320x280 | 982x320x280 |
| Weight (kg) | 22 | 24 | 28 | 34 | 40 |
| Air Flow (L/stroke) | 5.9 | 9.3 | 14.5 | 13.6 | 25.4 |
| Applicable Cable Size | Φ2～19mm (TURBO-I: Φ2～24mm) |
| Power Supply | AC100V～240V |
| Air Pressure | 0.49～0.69MPa(5～7kgf/cm2) |
Sample
