Stock Information

KM-3100  Digital Cutting Machine

Automatic tube cutting machine for shrinkable tubes, PVC tubes etc.

Easy to operate

The simple designed control panel helps you to use it very easily.

Reel stand is provided

The reel stand that can set bobbins up to a radius of 250 mm is built into the main body.

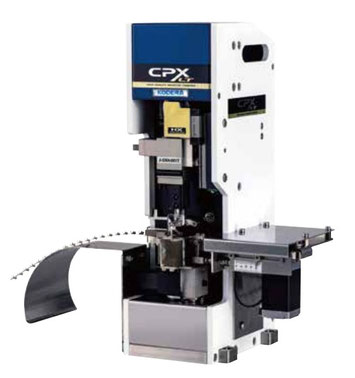

CPX-LT  Semi-automatic Manual Crimper for HX applicator

[For Kodera HX applicator]

Small workhorse of lightweight and compact design.

The CPX-LT uses an HX applicator and displays its full potential in the manufacture of prototypes and small-lot products with outstanding flexibility.

It makes troublesome adjustments for use as a single function no longer required and offers a choice between a highly operable finger push switch and a foot switch.

※Crimping capacity: 0.8 t

    Wire size: AWG#34 to AWG#18

TD-CTRL-01  Air pressure monitoring / operation controller

Interlock function

Notifies with a buzzer when air pressure falls below a set pressure.

Forcibly prohibits operation in that state.

Timer function

Holds air operation for the time set by the timer.

Maintains constant ON time even if the operator changes.

Application

Prevents defects due to insufficient pressure by monitoring the air source pressure of air-driven equipment, etc.
