It takes only a few minutes to learn how to operate the machine. The cutting diameter, strip length and pull-off length can be adjusted with just three dials. A precise incision diameter can be set thanks to the large LED display with 0.01 mm resolution.
Compact mobile type

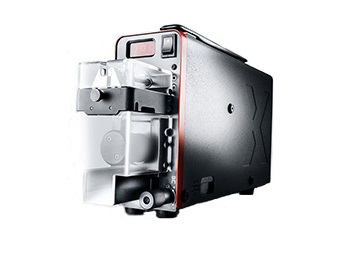

With the carry handle and compact dimensions, the 4.5 kg machine is easy to transport. All that is needed to operate the Mira 32 is
an electrical connection.
|Function||Full strip, semi-strip|
|Conductor cross-section||AWG#32～#12 (0.03～3.3m㎡)|
|Outer diameter||Up to 4mm|
|Strip length||1～25 mm|
|Pull-off length||2～25 mm|
|Resolution of the incision diameter display||0.01 mm|
|Minimum breakout length||
With standard grippers: 14mm
With thin grippers: 11mm
|Blade type||Universal V-Blade|
|Trigger||Sensor, optional foot pedal|
|Gripper force||Mechanically adjustable|
|Typical cycle time||～0.3 s|
|Electrical connection||50/60 Hz, 100 – 240 V AC, 40 VA|
|Compressed air connection (air jet for cleaning)||57 bar|
|Ambient temperature for operation||5～40 °C|
|Dimensions||81 × 191 × 352 mm|
Conforms to the relevant CE directives on machine safety
and electromagnetic compatibility.
