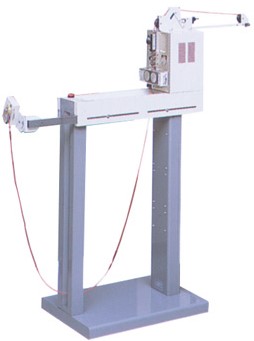

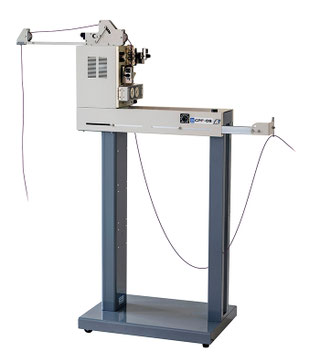

CPF-05A  Pre-feeder with computer learning function


It excels at straightening wires, receiving cutting length signals from the CASTUGNON unit, and, with the help of the CPF-05A unit's auxiliary sensor, smoothly feeds the wire at a maximum speed of 3.3m per second, matching the processing speed. The horizontal mounting bracket further saves space, allowing the operator to manage the wire bundle, the CASTUGNON unit, and the processed wire without moving a single step.

Specification


Model CPF-05A
Wire Size AWG#14~#28 *Depends on the wire type
Power Supply AC100V or 220V 50Hz/60Hz (single-phase power supply)
Power Consumption Rated:30W / Max:130W
Dimension 420 × 1,135-1,420 × 1,350mm
Weight 40kg
