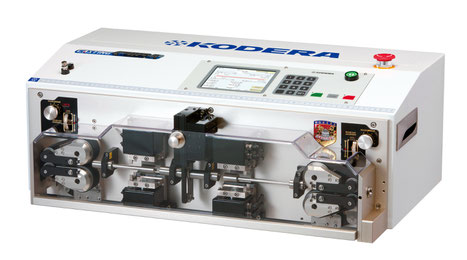

Casting C385A


Belt feed system

The belt feed system has actualized the stable length measurement because it can grasp the face of the cable whose surface is unlevel, which is often seen on cabtire cables or shield wires, etc. Switching of the belt feeding by air control can be performed at the flip of a switch on the operation panel.



Protect wire cores



It doesn’t damage the core wire since stripping is performed with special round blade and cutting of the wire is processed with V-blade all together.



Shifting of the front end strip unit is possible!

Accuracy of processing the wire of stretchy insulation will go up if the front end strip unit is shifted to the position near the front end belt feed.


Processing capacity


Processing conditions:

▪Front/Rear strip length 100mm

▪Front/Rear half strip length 50mm

▪Speed 9

Total Length  Processing Capacity
   700mm 891 pcs/hour
1,000mm 769 pcs/hour
2,000mm 530 pcs/hour
3,000mm 405 pcs/hour

Specification


Model

C385A
Stripping Length  Front:Max 1,500mm / Rear:Max 210mm *Half strip only
Cutting Length  210mm~99,999mm
Cutting Tolerance ± (0.1+0.0005×L) mm
Minimum processing Length L≧210mm*
Wire Size AWG#7 (10sq)~#28 (0.08sq) *Depends on the wire type
Wire Diameter Maxφ11mm *Depends on the wire type
Wire Type

ABS wire, Air bag wire, Shield cable, Cabtire cable,

VSF, IV, KV, UL, Teflon etc.

Power Supply AC100V~AC240V 50/60Hz
Air Supply 0.06Nl/1 cycle 0.5MPa
Optional Equipment None
Dimension 716×430×266mm
Weight 44kg
