TW110 ｜ Taping Tool
TW110 is a tape winding machine for binding wire harnesses.
▪A roller assist function solved the problems of the quality and work time variations, and heavy work burden from the conventional manual work.
▪Pattern setting can be easily changed according to specification such as half lap and rough winding.
▪It realizes light weight and space saving.
Specification
| Model | TW110 |
| Applicable Work Diameter | φ８mm～φ30mm |
| Tape Material | Vinyl, Cloth |
| Tape Size |
Width: 15～19mm Inside(Core) Diameter: φ30mm～φ35mm Outside Diameter: ～φ95mm |
| Air Consumption | 5L /min |
| Power Input |
AC100V～240V
|
| Dimensions | W220 × D480 × H470 mm |
| Weight | 24.0 kg |
|
Other Functions
|
▪Rotation speed setting ▪Pitch setting between tapes ▪Tape holder is exchangeable ▪Auxiliary cutter is included ▪Guide roller (*option) |

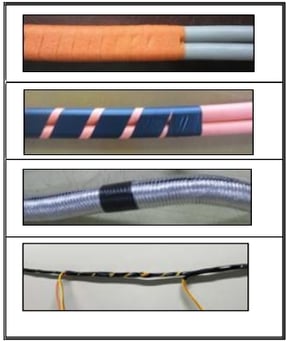

- Winding Pattern -
*Some of usable tapes may not be used as depends on the material and tape brand.
