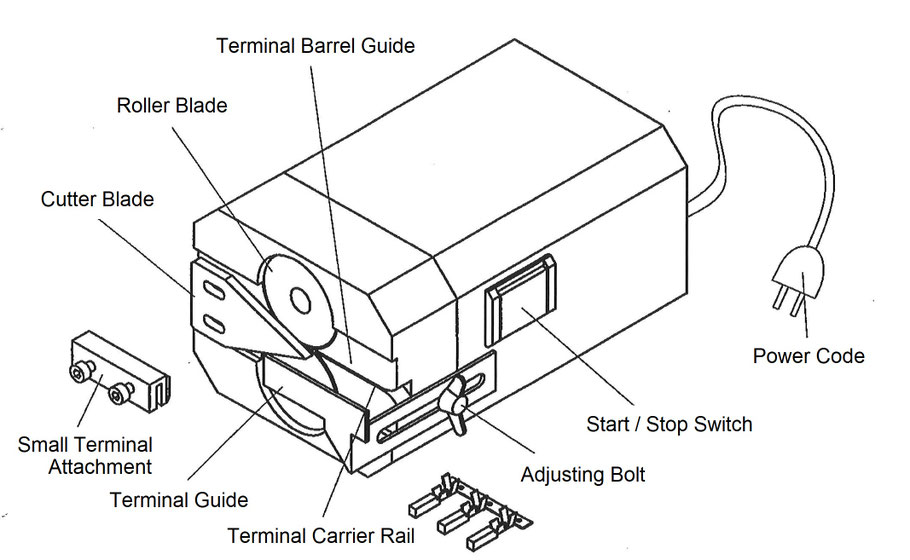

MC-97 Terminal Cutting Machine
This is a cutting machine used to separate continuous terminals into individual terminals.
It is compact, space-saving and easy to operate, with simple setup changes when switching terminals.
Specification
| Model | MC-97 |

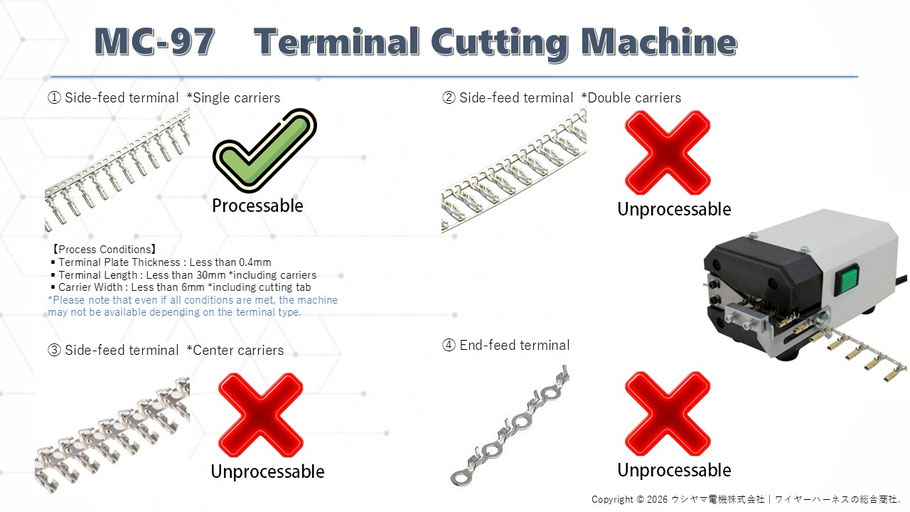

| Processing Conditions |
Terminal thickness: 0.4 mm or less Terminal overall width: 30 mm or less Carrier cutting width: 5.9 mm or less |
| External Dimensions |
W95 ×L140 ×H75 mm |
| Weight |
1.9KG |
| Power Supply |
AC100V 50/60Hz |
