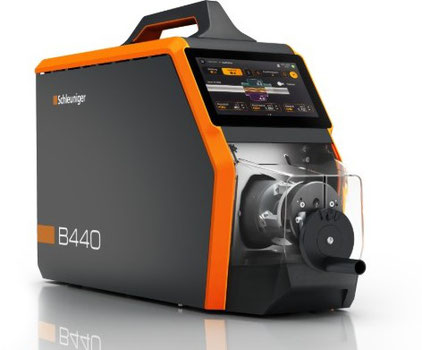

Strip Series B440

The smartest way to process multi-conductor cables!

・The Strip Series B440 strips coaxial, single-conductor, and multiconductor cables with a cross section from 0.05 to 70 mm² (30 - 2/0 AWG) and a diameter of up to 12 mm (0.47”).

・Repeat Accuracy and Precision on a Wide Range of Cables

The Strip Series B440 strips a wide range of wires, including stranded wires and multiconductor cables, without changing the blade. It also offers a programmable twisting function.

・High Production Output Due to Precise and Fast-Moving Cutter Head

The perfectly balanced bearings of the rotary cutter head ensure smooth and stable operation with high accuracy for maximum production output.

・Improve Productivity with an Easy-to-Use Design

The semi-automatic stripper improves the speed and quality of wire stripping with its ergonomic design, clear view of the workspace, and user-friendly color touchscreen.

・Reliable Feeding with Versatile Clamping Jaws

For reliable cable guidance, the clamping jaws close concentrically to the rotary axis, and their precision bearings ensure consistent stripping quality.

Specification

Model	B440
Function	Full strip, Semi-strip, Multi-strip, Multicore cable processing, Coaxial cable processing, Strand twisting, Multilayer cable stripping, Triaxial cable processing
Processable wire size	AWG#30～#2/0 (0.05～70mm)
Processable wire outer diameter size	Up to 12mm
Strip length	0.1～50mm
Increment of strip length	0.1mm
Pull-off length	0.1mm～50mm
Break-out length min.	30mm
Insulation material	PUR, Rubber, Teflon, Tefzel, Kapton, etc.
Blade	3 blades, rotative, straight
Incision diameter increment	0.01mm
Wire cross section min.	0.05mm²～70mm²
Gripping force	programmable
Piece output max.	800 pcs/h
Noise level	<57dB
Electrical connection	100 V AC to 240 V AC, 50/60 Hz
Compressed-air connection	4-6 bar
Compressed-air quality	Dry, filtered (10 μm), oil-free
Weight	22 kg
Dimensions	671 x 192 x 394mm (L x W x H)
Temperature operation	10-40°C
Processing outside the specifications	Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
Cycle time	3.3 sec
CE conformity	The B440 fully complies with the CE and EMC machinery directives relating to mechanical and electrical safety and electromagnetic compatibility, as well as UKCA, UL, and CSA
