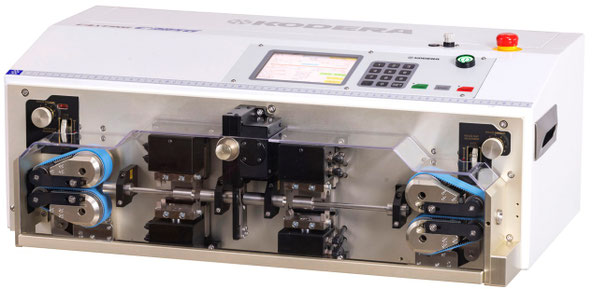

Casting C385G

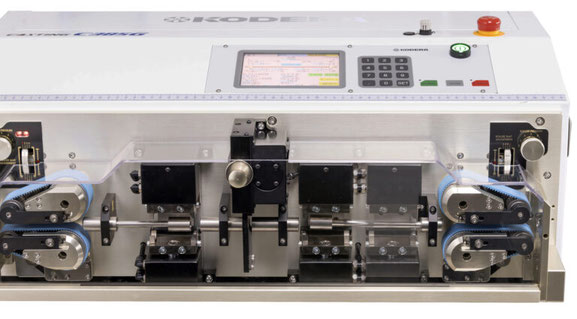

Belt feed system

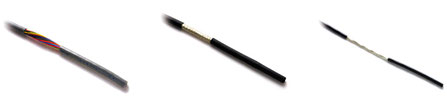

By using a belt feed system to supply wire, cables with uneven surfaces, such as cab-tire cables and shielded wires, can be gripped by their surface, achieving stable processing.

New generation board and Power supply system

Adopting a new generation board and power supply system provides even greater stability and reliability.

Shifting of the front end strip unit is possible!

Accuracy of processing the wire of stretchy insulation will go up if the front end strip unit is shifted to the position near the front end belt feed.

Processing capacity [when strip length is long]

Processing conditions:

▪Double-end stripping: 100 mm,

semi-stripping: 50 mm

▪Speed 9

Total Length	Processing Capacity
700mm	920 pcs/hour
1,000mm	790 pcs/hour
2,000mm	540 pcs/hour
3,000mm	400 pcs/hour

Processing capacity [when strip length is short]

Processing conditions:

▪Double-end stripping: 60 mm,

semi-stripping: 30 mm

▪Speed 9

Total Length	Processing Capacity
500mm	2,080 pcs/hour
1,000mm	1,280 pcs/hour
2,000mm	730 pcs/hour
3,000mm	510 pcs/hour

Specification

Model	C385G
Stripping Length	Front：Max 1,500mm / Rear：Max 210mm　*Half strip only
Cutting Length	210mm～99,999mm
Cutting Tolerance	± (0.1+0.0005×L) mm
Wire Size	AWG#7 (10sq)～#28 (0.08sq)　*Depends on the wire type
Wire Diameter	Maxφ11mm　*Depends on the wire type
Wire Type	ABS wire, Air bag wire, Shield cable, Glass wire, VSF, IV, KV, UL, Teflon etc.
Power Supply	AC100V～240V　50/60Hz
Air Supply	3.6Nl/1 cycle　0.5MPa
Optional Equipment	None
Dimension	735×457×288mm
Weight	49kg
