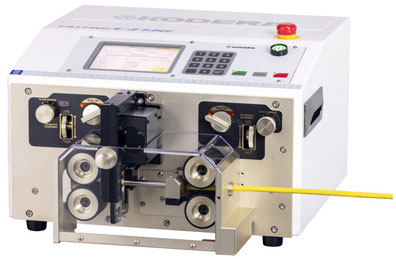

Casting C373G
Surprising wide range and high power
C373G has been achieved a wide range of machining of AWG#2(30sq)～AWG#28(0.08sq) in one machine. It can be widely used in a wide variety of industries since it corresponds to the round cable up toφ15mm maximum diameter.
Support 13 languages
The system is equipped with a multilingual display function and has ample space to accommodate the addition of further languages. Currently, it supports 13 languages (Japanese, English, Simplified Chinese, Traditional Chinese, Korean, Turkish, Polish, Indonesian, Thai, Vietnamese (2 languages), and Spanish (2 languages)).
Optional equipment for additional uses
The useful option would be a mid stripping unit CMS-801A2 (for C373G).
Processing capacity
| Total Length | Processing Capacity |
| 100mm | 2,550 pcs/hour |
| 200mm |
2,350 pcs/hour |
| 300mm | 2,150 pcs/hour |
| 500mm | 1,850 pcs/hour |
| 800mm | 1,500 pcs/hour |
| 1,000mm | 1,300 pcs/hour |
| 1,500mm | 1,100 pcs/hour |
| 2,000mm | 900 pcs/hour |
| 3,000mm | 650 pcs/hour |
| 5,000mm | 450 pcs/hour |

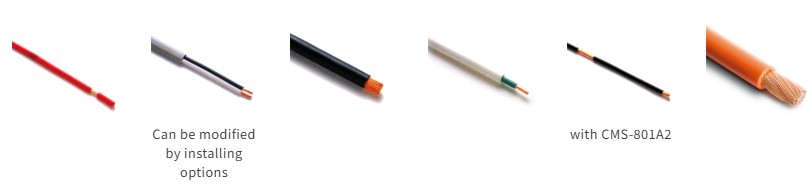

Processing sample
Processing conditions: Core diameter: 0.75 mm, Blade return: 0.15 mm, Both ends stripping: 3 mm, Processing speed: ALL 9, Standard mode, Wire: UL1007 AWG#22, Program G030 (as of February 2025)
*These are figures measured by our company. Depending on the type of wire or other processing conditions, the figures may be lower than those stated.
Specification
|
Model |
C373G |
| Stripping Length | Leading edge 0.1 to 47.9 mm, trailing edge 0.1 to 47.9 mm (use short wire mode for remaining insulation less than 47.9 mm) |
| Cutting Length | 0.1mm～99,999mm0.1mm to 99,999mm (settable value) |
| Cutting Tolerance | ±(0.1+0.0005×L)mm *2 <L is the cutting length> |
| Wire Size | AWG#2(30sq)～AWG#28(0.08sq) *Depends on the wire type |
| Wire Diameter | Maxφ15mm *Depends on the wire type |
| Wire Type | MLFC, AVSS, VSF, IV, KIV, KV, UL, Teflon™ wire, glass wire, tube, flat cable, etc. |
| Power Supply | AC100V～240V 50/60Hz |
| Optional Equipment | CMS-801A2 Mid stripping unit |
| Dimension | 450×530×290mm |
| Weight | 37kg |
Downloads
Options
Mid Stripping Unit
«for C373G»
CMS-801A2 can handle wires with an outer diameter of up to 8mm. It can mid strip in up to 10 different positions on a single wire. Automation has been accomplished thus far by this revolutionary equipment.
