SIS-01 Waterproof seal automatic insertion and stripping machine
The SIS-01 is a high-performance machine that is designed to automatically insert waterproof seals into pre-cut wires, such as a multi-core cables, and then accurately strip the sheath.

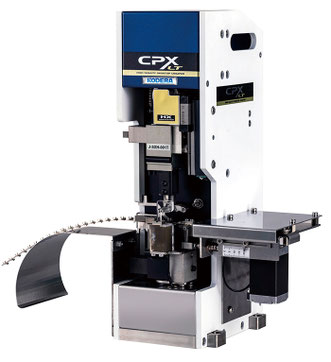

It is equipped with a DF-01 (disk feeder) as it is, and realizes the speedy, stable supply of waterproof seals. In combination with a CCP-02 (semi-automatic manual crimper) and a CPX-LT (semi-automatic manual crimper exclusively for HX applicator), the operation from the insertion of waterproof seals to terminal crimping can be seamlessly performed.
Specification
| Model | SIS-01 |
| Outer Dimensions | W 467 x D 530 x H 320mm |
| Weight | 42kg |
| Power Supply | AC100V～240V (single phase) 50Hz/60Hz |
| Power Consumption | Rest: 54W / Max: 160W |
| Drive Supply | Stepping Motor, Air Cylinder |
| Minimum Wire Length | 80mm ※Depends on wire type |
| Tact Time | about 1.2 sec/cycle |
CCP-02 Semi-automatic manual crimper
The head unit of the C551SSA is independently operated. The ram portion is quipped with a load cell and a crimp force monitor capable of accurately measuring the crimp force when crimping each wire.
The CCP-02 is equipped with a shot counter and a function for preventing the inclusion of defective products.
Specification
| Model | CCP-02 |
| Outer Dimensions | W 415 x D 300 x H 685mm |
| Weight | 78kg |
| Power Supply | AC100V～240V (single phase) 50Hz/60Hz |
| Power Consumption | Rest: 67W / Max: 1,000W |
| Crimping Capacity | 2.5ton |
| Press Stroke | 30mm / Option: 40mm |
