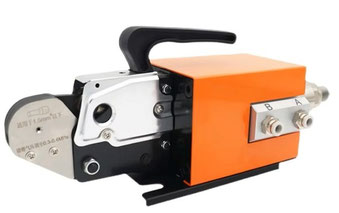

USHI-FAC01 Small Ferrule Terminal Crimping Tool
Compact Air-Powered Crimping Tool for Ferrule Terminals - Works Anywhere

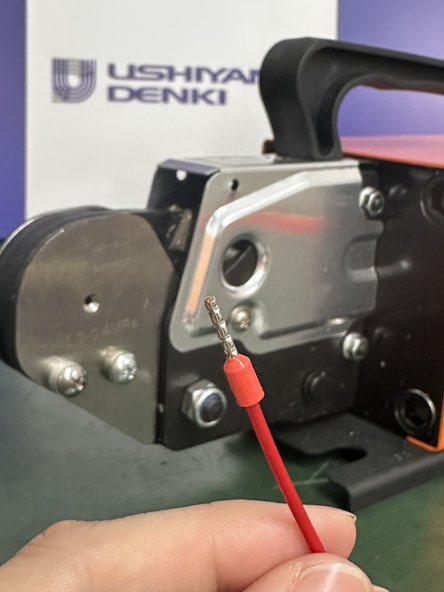

◆Simply insert the terminal and press the foot switch

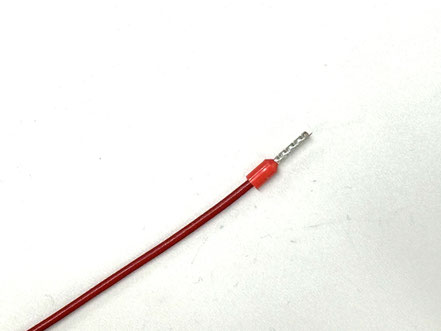

◆Performs square crimping
◆Accommodates a wide range of sizes from 0.5 to 6mm²
Option

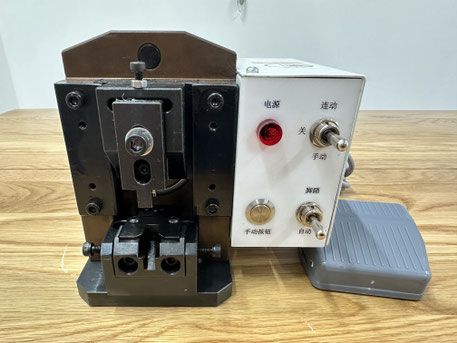

TD-CTRL-01 Air pressure monitoring / operation controller
Interlock function
Notifies with a buzzer when air pressure falls below a set pressure.
Forcibly prohibits operation in that state.
Timer function
Holds air operation for the time set by the timer.
Maintains constant ON time even if the operator changes.
Application
Prevents defects due to insufficient pressure by monitoring the air source pressure of air-driven equipment, etc.
Specification
| Model | USHI-FAC01 |
| Product Name | Small Ferrule Terminal Crimping Tool |
| Output | 1.3 T, Air Pressure 0.7 MPa |

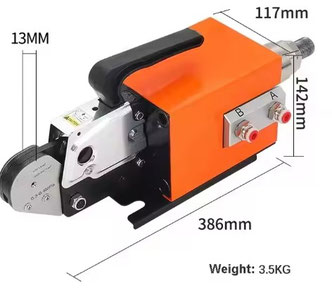

| Dimension | W386mm×H142mm×D117mm |
| Weight |
3.5kg |

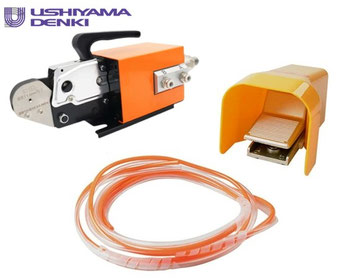

| Accessories |
Main unit, foot switch, air tube |
