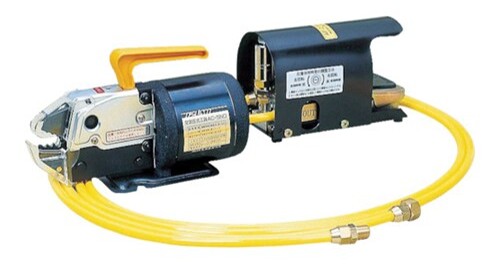

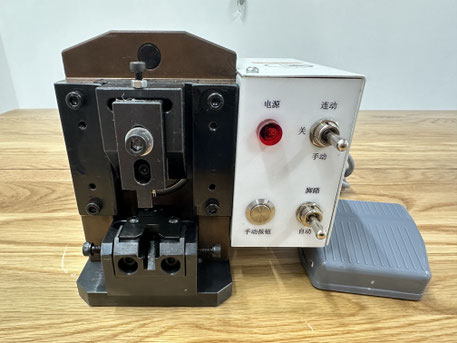

AC-5N-D Air-powered tool
This air-powered tool is designed for various general-purpose terminals such as round terminals and Y terminals.
By changing the dies, it can handle multiple terminal types and wire sizes, including bare terminals and crimp terminals with insulation.
The foot pedal incorporates an air timer.
Option
TD-CTRL-01 Air pressure monitoring / operation controller
Interlock function
Notifies with a buzzer when air pressure falls below a set pressure.
Forcibly prohibits operation in that state.
Timer function
Holds air operation for the time set by the timer.
Maintains constant ON time even if the operator changes.
Application
Prevents defects due to insufficient pressure by monitoring the air source pressure of air-driven equipment, etc.
Specification
| Operating Air Pressure | 0.5～0.6MPa(5～6kgf/cm) |
| Air Consumption | 33 L/min (when used 30 times per minute) |
| Dimensions and Weight | 190 × 99 × 92, 2.0 kg (main unit) |
| Hose used | Pressure rating: 1 MPa (10 kgf/cm²) (with PT 1/4" fitting) |
| How to Operate |
Foot pedal operation |
| Hose Length |
From the air inlet to the foot pedal: 2m. From the foot pedal to the main unit: 2m. |
