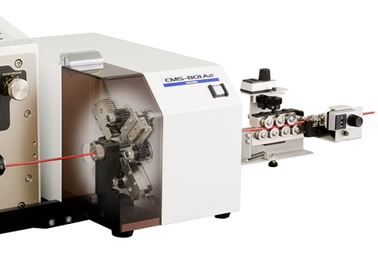

CMS-801A2 / CMS-845A2 Automatic Mid Stripping Unit
CMS-801A2 can handle wires with an outer diameter of up to 8mm. It can mid strip in up to 10 different positions on a single wire. Automation has been accomplished thus far by this revolutionary equipment.
Specification
| Model | CMS-801A2 |
| Outer Dimensions | 185×355×190mm |
| Weight | 12kg |
| Power Consumption | 390W (Max) 65W while idling |
| Mid Stripping Length | Max Up to 34mm |
| Mid Stripping Distance | Min 48.5mm |
| Mid Stripping Positions | Max Up to 10 positions |
| Wire Size | Max φ8mm |
| Drive | Stepping motor |
