Strip Series B300

The smartest way to process multi-conductor cables!

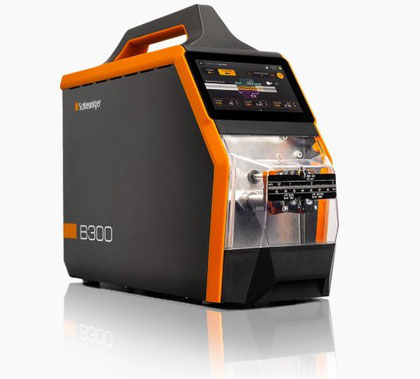

・The portable B300 stripping machine reliably strips cables with cross sections from 0.03 to 8 mm² (32 to 8 AWG) and up to 7 mm (0.27") outer diameter.

・Simple Conductor Processing in Only 35 Clicks

Programming multiconductor cables is fast and easy with the B300. It takes about 35 clicks to program a multicore cable—compared to approximately 130 clicks on the UniStrip 2300.

・High flexibility with additional clamp jaws

The narrow 1.8 mm clamping jaws and various surface options (cross-hatch and diamond) enable the processing of a wide range of cables. Cable-specific jaws are available on request.

・High-Resolution Touchscreen with Concise User Interface

All relevant information is displayed in a large format and clearly distinguished by color. The most frequently used functions are visualized for easy guidance.

Specification

Model	B300
Function	Full strip, Semi-strip, Multi-strip, Multicore cable processing
Processable wire size	AWG#32～#8 (0.03～8mm)
Processable wire outer diameter size	Up to 7φ
Strip length	0.1～50mm
Increment of strip length	0.1mm
Pull-off length	0.1mm～30mm
Max. conductor diameter for cutting	1.8mm
Break-out length min.	11mm
Insulation material	PUR, Rubber, Teflon, Tefzel, Kapton, etc.
Blade	2 blades linear, horizontal
Incision diameter increment	0.01mm
Wire cross section min.	0.03mm²～8mm²
Gripping force	programmable
Piece output max.	2800 pcs/h
Noise level	<57dB
Electrical connection	100 V AC to 240 V AC, 50/60 Hz
Compressed-air connection	4-6 bar
Compressed-air quality	Dry, filtered (10 μm), oil-free
Weight	11 kg
Dimensions	418 x 132 x 317mm (L x W x H)
Temperature operation	10-40°C
Processing outside the specifications	Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
Cycle time	0.35 sec
CE conformity	The B300 fully complies with the CE and EMC machinery directives relating to mechanical andelectrical safety and electromagnetic compatibility.
